Quality Manual Canopy Curtain

Features: work fine, drive shaft part is mounted in bearings, smooth operation, low noise.

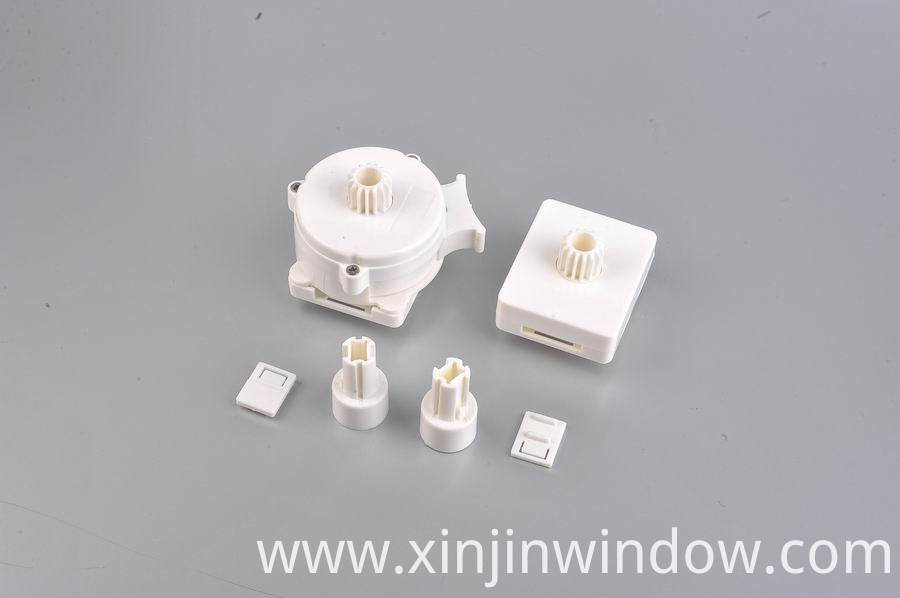

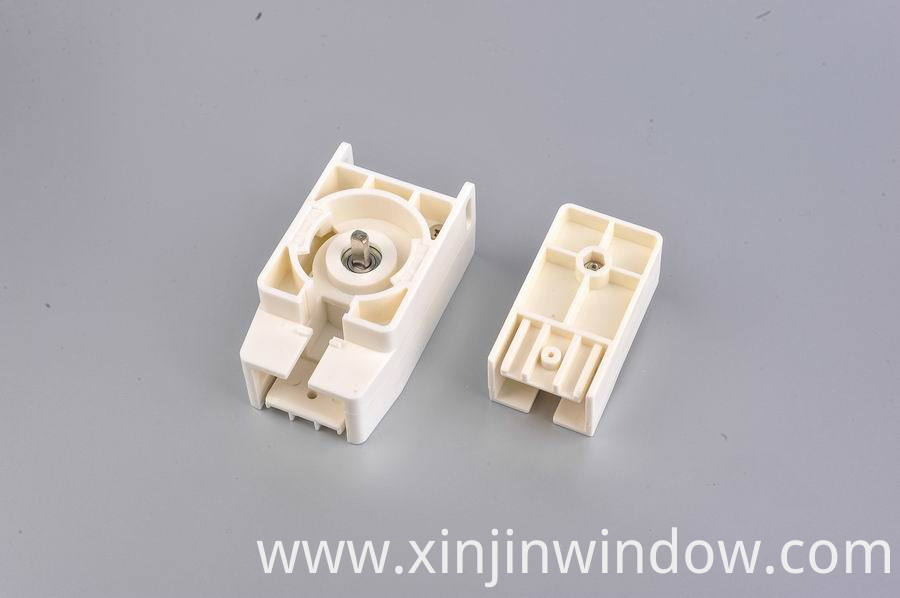

Name: toothed belt drive box
Specifications: toothed belt
Material: PC
Color: White
Sunshade
Electric ceiling screens, sky-light blinds, mainly used in electric skylight shade system aspects, depending on the operating principle can be divided Reel ceiling screens, folding ceiling curtain, leaves flip-ceiling screens and so on. Reel, folding electric ceiling screens generally use different transmittance textile shade leaves flip-shade systems generally use a vertical slice, slice blinds, flip control sunlight entering through the blade chamber proportion to shade. There are: FCS ceiling curtain, FSS ceiling curtain, FTS ceiling screens, folding ceiling curtain of the four types of electric curtains.
Chinese name
Sunshade
Foreign Name
Sunshade curtain
Classification
Reel, folding, tilting blade
Frequently
FCS, FSS, FTS ceiling screens
Applicable
Commercial buildings, shopping malls, hotels, office buildings
Control
Wireless, infrared, manual and intelligent control, etc.
1 reel Sunshade
▪ FCS ceiling screens
▪ FSS Sunshade
▪ FTS Sunshade
2 folding Sunshade
▪ electric double-track Sunshade
▪ Manual track folding Sunshade
1 reel Sunshade editor
Reel ceiling screens, rolling model of sky-light blind.
FCS ceiling screens
1, the maximum area of 35 square meters, a width of more than 3.5 meters can be a drag when a drag two or three institutions.
2, for the production of large-area folding ceiling, cost-effective, and reliable performance.
3, control: wireless remote control, infrared remote control, manual control and intelligent control.
4, for public places and other large shade ceiling screens.
FSS Sunshade

1, each system using a 50 series of tubular motor and a spring system.
2, fabric winding at one end of a spring-loaded roller tube, the other end of the tubular motors fitted with roller tube Tam for tension when opened.
3, the system for the single open mode, can be made inclined, curved or trapezoidal ceiling screens.
4, the system travel up to 6 meters, the single largest area of 12 square meters.
5, control: radio remote control, infrared remote control, manual control and intelligent control, can achieve alone, packet control or group control.
6, suitable for small building shading system.
FTS Sunshade
1, each system uses two of the same model FTS special tubular motor.
2, the system for the single open mode, can be made into a curved ceiling curtain system, the system maximum stroke of 12 meters, the largest single area of 50 square meters.
3, when the system long trip, the general guide rails or rope.
4, control: wireless remote control, infrared remote control, manual control, wind, light, rain and other intelligent control, enabling group control and group control.
5, suitable for large-scale construction of indoor and outdoor shading systems.
2 folding ceiling curtain editor
Folding ceiling curtain, oriented model of sky-light blind, divide the guide wire off
Rail folding Sunshade
Stacked ceiling screens, folding ceiling curtain rail guide. Folding ceiling curtain, can be used in commercial buildings, shopping malls, hotels, office buildings, and other large skylights can also be used for senior housing sun room, garden shed, glass balcony, etc. adjust shade, keeping proper indoor temperature, avoid bright light radiation, improved lighting effects .
1, can be made into flat or curved ceiling screens;
2, the wire belt drive, the largest area of 250,000 square meters;
Wire guiding folding Sunshade
3, control: wireless remote control, manual control and intelligent control;
4, for the production of large-area folding ceiling, wavy type.
Double-track electric ceiling screens
Electric folding ceiling curtain track is secured to the top of the top indoor lighting or oblique side glass skylight sash can retractable shade systems that track Translational Systems.
It may be straight, may be curved. According to the architectural characteristics of the building, we used linear track ceiling screens. Both shade and keep the architectural design practical style. Each deputy Sunshade made about two guide rails, drives the track when the motor is started, the intermediate shaft by an elastic traction lead cloth shade fabric so as to achieve the purpose.
Electric folding ceiling curtain track can be used in commercial buildings, shopping malls, hotels, office buildings, and other large skylights can also be used for senior housing sun room, garden shed, glass balcony, etc. adjust shade, keeping proper indoor temperature, avoid bright light radiation, improving lighting effect
Manually folding ceiling curtain track
Manually folding ceiling curtain track system is ideal for the project to use.

Manual Sunshade image

Manual Sunshade unique load side guide rails can be bent according to the building curve in order to achieve the perfect combination of the building. Meanwhile manual drive mechanism, any deployment direction, to a greater extent to meet your various operational needs.
This system has a simple type and luxury, according to different needs, to achieve a variety of artistic shading effect.
Suitable for pendant, hanging and box installation.

This system uses the manual limit function, when running into a defined position, the system will not allow the operation.

Product Categories : Roller Blinds Components Series
